Basic Electrical and Electronics Engineering: Unit I: Electrical Circuits
Problem Related to Waveforms and Definitions of Different Factor
Electrical Circuits
Area under half cycle = Area of Δ OAB + Area of Δ CDE+ Area of rectangle ACDB
PROBLEM RELATED TO WAVEFORMS AND DEFINITIONS OF DIFFERENT FACTOR
Example: 1
The period of a sine wave is 20 ms. What is the frequency?
Example: 2
The frequency of a sine wave is 40 Hz. What is its period?
Example: 3

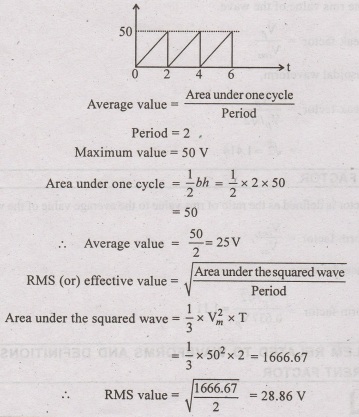

Find the average and effective values of the saw tooth wave form shown in fig.
Example: 4

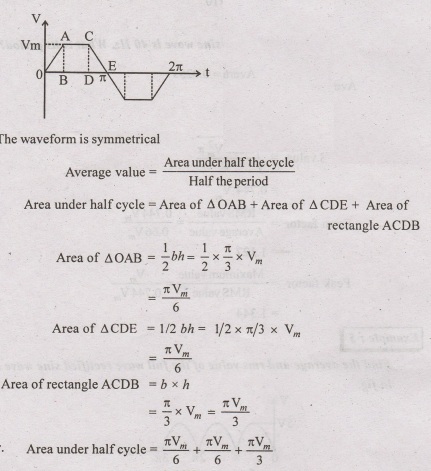

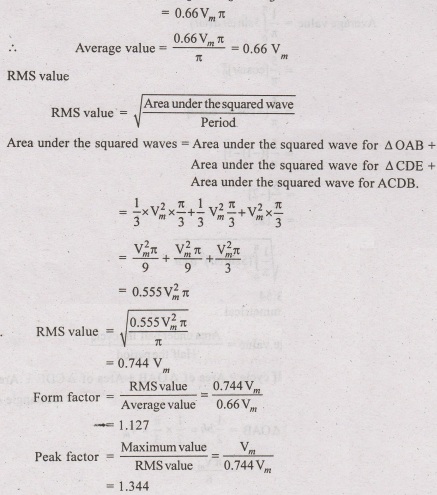

Find the average, RMS, form factor and peak factor of the following waveform.
Example: 5

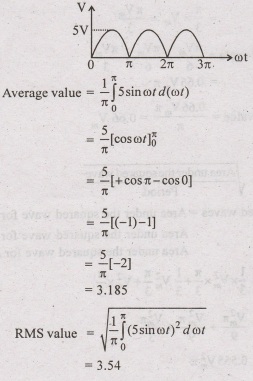

Find the average and rms value of the full wave rectified sine wave shown in fig.
Basic Electrical and Electronics Engineering: Unit I: Electrical Circuits : Tag: : Electrical Circuits - Problem Related to Waveforms and Definitions of Different Factor
