Dynamic Memory Allocation

DYNAMIC MEMORY ALLOCATION

The process of allocating memory to the variables during execution of the program or at run time is known as dynamic memory allocation. C language has four library routines which allow this function.

Till now whenever we needed an array we had declared a static array of fixed size, say

int arr [100];

When this statement is executed, consecutive space for 100 integers is allocated. It is not uncommon that we may be using only 10% or 20% of the allocated space thereby wasting rest of the space. To overcome this problem and to utilize the memory efficiently c language provides a mechanism of dynamically allocating memory so that only the amount of memory that is actually required is reserved. We reserve space only at the run time for the variables that are actually required. Dynamic memory allocation gives best performance in situations in which we do not know memory requirements in advance.

C provides four library routines to automatically allocate memory at the run time. These routines are shown in Table 7.2.

When we have to dynamically allocate memory for variables in our programs then pointers are the only way to go. When we use malloc() for dynamic memory allocation, then you need to manage the allocated for variables yourself.

Memory Allocations Process

In computer science, the free memory region is called the heap. The size of heap is not constant as it keeps changing when the program is executed. In the course of program execution, some new variables are created and some variables cease to exist when the block in which they were declared is exited. For this reason it is not uncommon to encounter memory overflow problems during dynamic allocation process. When an overflow condition occurs, the memory allocation functions mentioned above will return a null pointer.cl

Allocating a Block of Memory

Let us see how memory is allocated using the malloc(). malloc is declared in <stdlib.h>, so we include this header file in any program that calls malloc. The malloc function reserves a block of memory of specified size and returns a pointer of type void. This means that we can assign it to any type of pointer. The general syntax of the malloc() is

ptr = (cast-type*) malloc (byte-size);

where ptr is a pointer of type cast-type. The malloc() returns a pointer (of cast type) to an area of memory with size byte-size. For example,

arr= (int *)malloc (10* sizeof (int));

This statement is used to dynamically allocate memory equivalent to 10 times the area of int bytes. On successful execution of the statement the space is reserved and the address of the first byte of memory allocated is assigned to the pointer arr of type int.

Programming Tip: To use dynamic memory allocation functions, you must include the header file stdlib.h.

The function Calloc() is another function that reserves memory at the run time. It is normally used to request multiple blocks of storage each of the same size and then sets all bytes to zero. Calloc() stands for contiguous memory allocation and is primarily used to allocate memory for arrays. The syntax of calloc() can be given as

ptr= (cast-type*) calloc (n, elem-size);

The above statement allocates contiguous space for n blocks each size of elements size bytes. The only difference between malloc() and calloc() is that when we use calloc(), all bytes are initialized to zero. Calloc() returns a pointer to the first byte of the allocated region.

When we allocate memory using malloc() calloc(), a null pointer will be returned if there is not enough space in the system to allocate. A null pointer, points definitely nowhere. It is a not a pointer marker; therefore, it is not a pointer you can use. Thus, whenever you allocate memory using malloc() or calloc(), you must check the returned pointer before using it. If the program receives a null pointer, it should at the very least print an error message and exit, or perhaps figure out some way of proceeding without the memory it asked for. But in any case, the program cannot go on to use the null pointer it got back from malloc ()/calloc().

A call to malloc, with an error check, typically looks something like this:

int *ip = malloc (100 * sizeof (int));

if (ip == NULL)

{

printf("\n Memory could not be allocated");

return;

}

31. Write a program to read and display values of an integer array. Allocate space dynamically for the array.

#include <stdio.h>

#include <conio.h>

#include <stdlib.h>

main ()

{

int i, n;

int *arr;

clrscr();

printf("\n Enter the number of elements ");

scanf("%d", &n);

arr = (int *)malloc(n* sizeof(int));

if (arr == NULL)

{

printf("\n Memory Allocation Failed");

exit (0);

}

for (i=0;i<n;i++)

{

printf("\n Enter the value %d of the array: ", i);

scanf("%d", &arr[i]);

}

printf("\n The array contains \n");

yo for (i=0;i<n;i++)

printf("%d", arr[i]); // another way is to write * (arr+i)

return 0;

}

Now let us also see how we can allocate memory using the calloc function. The calloc() function accepts two parametres-num and size, where num is the number of elements to be allocated and size is the size of elements. The following program demonstrates the use of calloc() to dynamically allocate space for an integer array. #include <stdio.h>

#include <stdlib.h>

main ()

{

int i,n;

int *arr;

printf ("\n Enter the number of elements: ");

scanf("%d", &n);

arr = (int *) calloc (n, sizeof(int));

if (arr==NULL)

exit (1);

printf("\n Enter the %d values to be stored in the array", n);

for (i = 0; i < n; i++)

scanf("%d", &arr[i]);

printf ("\n You have entered: ");

for(i = 0; i < n; i++)

printf ("%d", arr[i]);

free (arr);

return 0;

}

Releasing the Used Space

When a variable is allocated space during the compile time, then the memory used by that variable is automatically

released by the system in accordance with its storage class. But when we dynamically allocate memory then it is our responsibility to release the space when it is not required. This is even more important when the storage space is limited. Therefore, if we no longer need the data stored in a particular block of memory and we do not intend to use that block for storing any other information, then as a good programming practice we must release that block of memory for future use, using the free function. The general syntax of the free () is,

free (ptr);

where ptr is a pointer that has been created by using malloc() or calloc(). When memory is de-allocated using the free (), it is returned back to the free list within the heap.

To Alter the Size of Allocated Memory

At times the memory allocated by using calloc() or malloc() might be insufficient or in excess. In both the situations we can always use realloc() to change the memory size already allocated by calloc() and malloc(). This process is called reallocation of memory. The general syntax for realloc() can be given as

ptr = realloc (ptr, newsize);

The function realloc() allocates new memory space of size specified by newsize to the pointer variable ptr. It returns a pointer to the first byte of the memory block. The allocated new block may be or may not be at the same region. Thus, we see that realloc() takes two arguments. The first is the pointer referencing the memory and the second is the total number of bytes you want to reallocate. If you pass zero as the second argument, it will be equivalent to calling free (). Like malloc() and calloc(), realloc returns a void pointer if successful, else a NULL pointer is returned.

If realloc() was able to make the old block of memory bigger, it returns the same pointer. Otherwise, if realloc() has to go elsewhere to get enough contiguous memory then it returns a pointer to the new memory, after copying your old data there. However, if realloc() can't find enough memory to satisfy the new request at all, it returns a null pointer. So again you must check before using, that the pointer returned by the realloc() is not a null pointer.

/*Example program for reallocation*/

#include <stdio.h>

#include <stdlib.h>

#define NULL 0

main()

{

char *str;

/*Allocating memory*/

str = (char *)malloc(10);

if (str==NULL)

{

printf("\n Memory could not be allocated");

exit (1);

}

strcpy(str, "Hi");

printf("\n STR = %s", str);

/*Reallocation*/

str = (char *) realloc(str, 20);

if (str==NULL)

{

printf("\n Memory could not be reallocated");

exit(1);

}

printf("\n STR size modified.\n");

printf("\n STR = %s\n", str);

strcpy(str., "Hi there");

printf("\n STR = %s", str);

/*freeing memory*/

free (str);

return 0;

}

With realloc(), you can allocate more bytes without losing your data.

Dynamically Allocating a 2D Array

We have seen how malloc() can be used to allocate a block of memory which can simulate an array. Now we can extend our understanding further to do the same to simulate multidimensional arrays.

If we are not sure of the number of columns that the array will have, then we will first allocate memory for each row by calling malloc. Each row will then be represented by a pointer. Look at the code below which illustrates this concept.

#include <stdlib.h>

#include <stdio.h>

main()

{

int **arr, i, j, ROWS, COLS;

printf("\n Enter the number of rows and columns in the array: ");

scanf("%d %d", ROWS, COLS);

arr = (int **)malloc (ROWS * sizeof(int *));

if (arr == NULL)

{

printf("\n Memory could not be allocated");

exit (-1);

}

for (i=0; i<ROWS; i++)

{

arr[i] = (int *)malloc (COLS * sizeof (int));

if (arr[i] == NULL)

{

printf("\n Memory Allocation Failed");

exit (-1);

}

}

printf("\n Enter the values of the array: ");

for (i=0; i < ROWS; i++)

{

for (j=0; j < COLS; j++)

scanf("%d", &arr[i] [j]);

}

printf("\n The array is as follows: ");

for (i=0; i < ROWS; i++)

{

for (j=0; j < COLS; j++)

printf("%d", arr[i] [j]);

}

for (i=0; i < ROWS; i++)

free (arr [i]);

free (arr);

return 0;

}

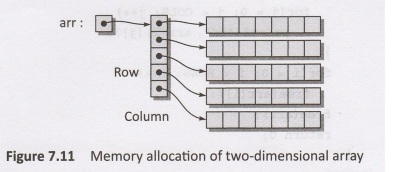

Here, arr is a pointer-to-pointer-to-int: at the first level as it points to a block of pointers, one for each row. We first allocate space for rows in the array. The space allocated to each row is big enough to hold a pointer-to-int, or int *. If we successfully allocate it, then this space will be filled with pointers to columns (number of ints). This can be better understood from Figure 7.11.

Once the memory is allocated for the two-dimensional array, we can use subscripts to access its elements. When we write, arr [i] [j], it means we are looking for the i^th pointer pointed to by arr, and then for the j^th int pointed to by that inner pointer.

When we have to pass such an array to a function, then the prototype of the function will be written as

func (int **arr, int ROWS, int COLS);

In the above declaration, func accepts a pointer- to-pointer-to-int and the dimensions of the arrays as parametres, so that it will know how many rows and columns there are.

Look at the code given below which illustrates another way of dynamically allocating space for a 2D array.

#include <stdlib.h>

#include <stdio.h>

main()

{

int *arr, i, j, ROWS, COLS;

printf("\n Enter the number of rows and columns in the array: ");

scanf("%d %d", ROWS, COLS);

arr = (int *)malloc (ROWS * COLS *sizeof(int));

if (arr == NULL)

{

printf("\n Memory could not be allocated");

exit (-1);

}

printf("\n Enter the values of the array: ");

for(i = 0; i < ROWS; i++)

{

for (j = 0; j < COLS; j++)

scanf("%d", &arr[i] [j]);

}

printf("\n The array is as follows: ");

for (i 0; i < ROWS; i++)

{

for (j 0; j < COLS; j++)

printf("%d", arr[i] [j]);

}

for (i=0; i < ROWS; i++)

free (arr [i]);

free (arr);

return 0;

}

Note

To dynamically allocate space for a 3-D array, arr[10][20] [30], perform the following steps

1. int ***arr;

2. arr (int ***) malloc(10* sizeof(int ** ) ) ;

3. for(i=0;i<10;i++) arr[i] (int **) malloc (20*sizeof(int *));

4. for (i=0;i<10; i++) { for(j=0; j<20;j++) arr[i][j] (int *)malloc(30*sizeof (int));
