Database Management System: Unit I: Relational Databases
Database Integrity
Relational Databases - Database Management System
The foreign key is a key in one table that refers to the primary key of another table. The foreign key is basically used to link two tables.
Database
integrity
• The foreign key is a key in one table that refers
to the primary key of another table.
• The foreign key is basically used to link two
tables. For example

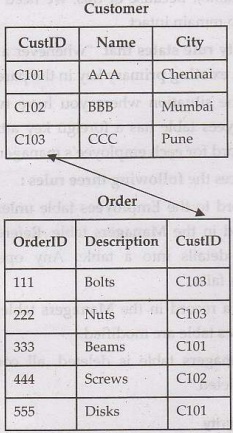

Consider Customer table as follows –
• Note that the "CustID"
column in the "Order" table points to the "CustID" column
in the "Customer" table.
• The "CustID" column in the
"Customer" table is the PRIMARY KEY in the"Customer" table.
• The "CustID" column in the
"Order" table is a FOREIGN KEY in the "Order" table.
• The table containing the foreign key
is called the child table, and the table containing the primary key is called
the referenced or parent table.
• The FOREIGN KEY constraint is used
to prevent actions that would destroy links between tables.
• The FOREIGN KEY constraint also prevents invalid
data from being inserted into the foreign key column, because it has to be one
of the values contained in the table it points to.
