Virtual Memory

Memory and I/O - Digital Principles and Computer Organization

The virtual memory technique is used to extend the apparent size of the physical memory.

Virtual Memory

AU: May-06,07,12,13,15,17, Dec.-06,07,08,09,10,12,15,16,18, June-07,09,10

Virtual Memory Concept

• The virtual memory technique is used to extend the apparent size of the physical memory.

• It uses secondary storage such as disks, to extend the apparent size of the physical memory.

• Virtual memory is a concept that allows user to construct programs as large as auxiliary memory.

• When a program does not completely fit into the main memory, it is divided into segments. The segments which are currently being executed are kept in the main memory and remaining segments are stored in the secondary storage devices, such as a magnetic disk.

• If an executing program needs a segment which is not currently in the main memory, the required segment is copied from the secondary storage device.

• When a new segment of a program is to be copied into a main memory, it must replace another segment already in the memory.

• In virtual memory, the addresses that processor issues to access either instruction or data are called virtual or logical address. The set of such addresses is called address space. These addresses are translated into physical addresses by a combination of hardware and software components.

• The set of physical addresses or locations is called the memory space.

Concept of Paging

• Fig. 8.5.1 shows a typical memory organization that implements virtual memory. The memory management unit controls this virtual memory system. It translates virtual address into physical addresses.

• A simple method for translating virtual addresses into physical addresses is to assume that all programs and data are composed of fixed length unit called pages, as shown in the Fig. 8.5.2.

• Pages constitute the basic unit of information that is moved between the main memory and the disk whenever the page translation mechanism determines that a swapping is required.

Virtual to Physical Address Translation

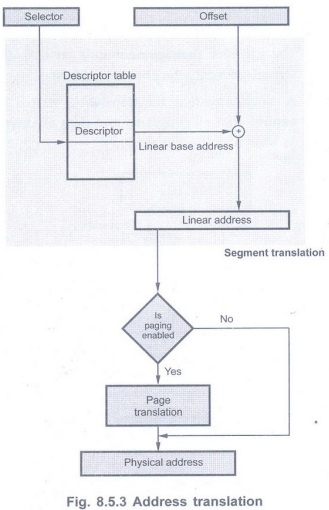

• Involves two phases: Segment translation and page translation.

Segment translation :

A logical address (also known as virtual address) consists of a selector and an offset. A selector is the contents of a segment register.

• Every segment selector has a linear base address associated with it, and it is stored in the segment descriptor. A selector is used to point a descriptor for the segment in a table of descriptors. The linear base address from the descriptor is then added to the offset to generate the linear address. This process is known as

segmentation or segment translation. If paging unit is not enabled then the linear address corresponds to the physical address. But if paging unit is enabled, paging mechanism translates the linear address space into the physical address space by paging translation.

Page translation

• Page translation is the second phase of address translation. It transforms a linear address generated by segment translation into a physical address.

• When paging is enabled, the linear address is broken into a virtual page number and a page offset.

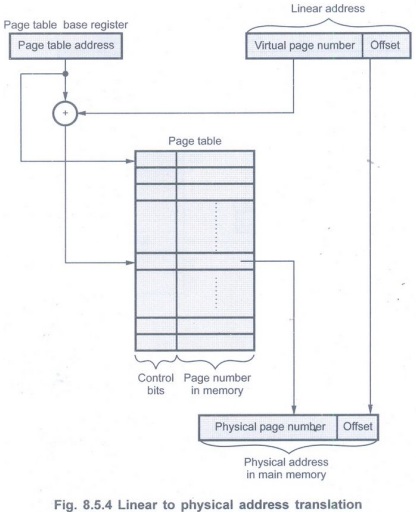

Fig. 8.5.4 shows the translation of the virtual page number to a physical page number. The physical page number constitutes the upper portion of the physical address, while the page offset, which is not changed, constitutes the lower portion. The number of bits in the page offset field decides the page size.

• The page table is used to keep the information about the main memory location of each page. This information includes the main memory address where the page is stored and the current status of the page.

• To obtain the address of the corresponding entry in the page table the virtual page number is added with the contents of page table base register, in which the starting address of the page table is stored. The entry in the page table gives the physical page number, in which offset is added to get the physical address of the main memory.

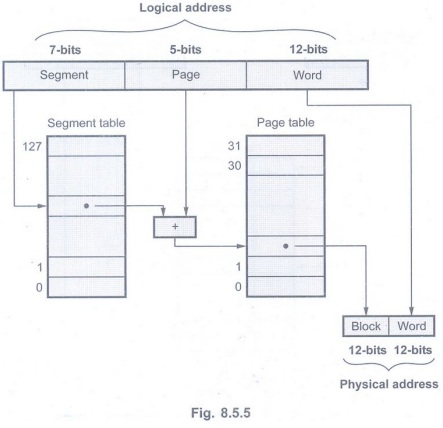

Example 8.5.1 The logical address space in a computer system consists of 128 segments. Each segment can have up to 32 pages of 4 K words each. Physical memory consists of 4 K blocks of 4 K words in each. Formulate the logical and physical address formats.

Solution :

Number of bits for segment address = log2 128 = log227 = 7 bits

Number of bits for page address = log232 = log222 log2

Number of bits for word address = log2 4096 = 212 = 12 bits

Number of bits for block address = log24096 = log2212 = 12 bits

Example 8.5.2 An address space is specified by 32 bits and corresponding memory space by 24 bits.

i) How many words are there in the address space?

ii) How many words are there in the memory space?

iii) If a page consists of 4 K words, how many pages and blocks are there in the systems.

Solution :

i)Words in the address space 232 = 4 G words

ii) Words in the memory space = 224 = 16 M words

iii) Number of pages = Words in address space/Words per page = 4 G words/4 K words = 1 M pages

iv) Number of blocks = Words in memory space/Words per page/block = 16 M words/4 K words = 4 K words

Example 8.5.3 An address space is specified by 24 bits and the corresponding memory space by 16 bits. How many words are there in the virtual memory and in the main memory ?  AU May-13, Marks 2

Solution: Words in the address space, i.e., in the virtual memory

=224 = 16 M words

Words in the memory space, i.e., in the main memory

=216 = 64 K words

Translation Lookaside Buffer (TLB)

• To support demand paging and virtual memory processor has to access page table which is kept in the main memory. To reduce the access time and degradation of performance, a small portion of the page table is accommodated in the memory management unit. This portion is called Translation Lookaside Buffer (TLB).

• It is used to hold the page table entries that corresponds to the most recently accessed pages. When processor finds the page table entries in the TLB it does not have to access page table and saves substantial access time.

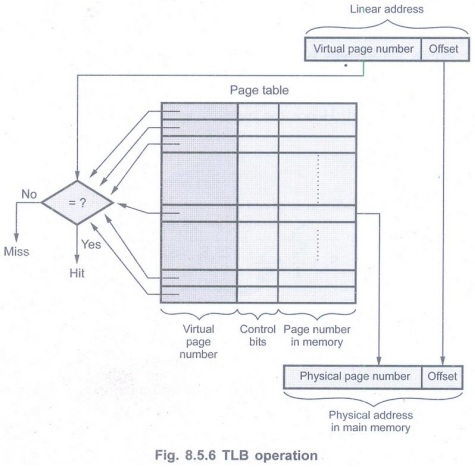

• The Fig. 8.5.6 shows a organization of a TLB where the associative mapping technique is used.

• As shown in the Fig. 8.5.6, a given virtual address is compared with the TLB entries for the reference page by MMU. If the page table entry for this page is found in the TLB, the physical address is obtained immediately.

• If entry is not found, there is a miss in the TLB, then the required entry is obtained from the page table in the main memory and the TLB is updated.

• It is important that the contents of the TLB be coherent with the contents of page tables in the memory. When page table entries are changed by an operating system, it must invalidate the corresponding entries in the TLB. One of the control bits in the TLB is provided for this purpose. When an entry is invalidated, the TLB acquires the new information as a part of the MMU's normal response to access misses.

Page Size

• The page size has a great effect on both storage utilization and the effective memory data transfer rate. It is denoted by Sp.

• If Spis too large, excessive internal fragmentation results and if it is too small, the page tables become very large. This tends to reduce space utilization (u). There should be balance between these two schemes.

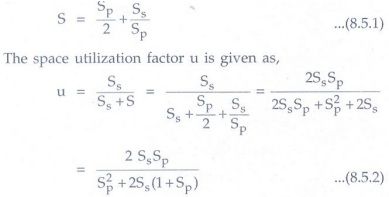

• Let us denote the average segment size in words as S. If   Ss>>Sp, the last page assigned to a segment should contain about Sp /2 words. The size of the page table associated with each segment is approximately Ss/Sp words, assuming each entry in the table is a word. Hence the memory space overhead associated with each segment is,

• We can derive the expression for optimum page size SpOPT by defining the value of Sp, that maximizes u or, equivalently, that minimizes S. Differentiating S with respect to we obtain

• Substituting the value of SpOPT equation (8.5.2), we get the optimum space utilization as,

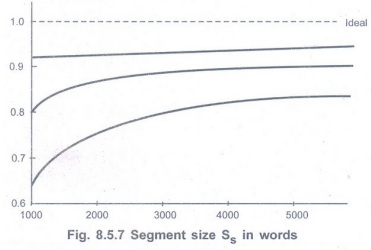

• The Fig. 8.5.7 shows the effect of page size and segment size on space utilization. It shows that space utilization factor increases with increase in segment size and it is optimum when Sp = √2Ss.

Page Fault and Demand Paging

• If the page required by the processor is not in the main memory, the page fault occurs and the required page is loaded into the main memory from the secondary storage memory by special routine called page fault routine.

• This technique of getting the desired page in the main memory is called demand paging.

• A demand-paging system is similar to a paging system with swapping. A swapper never swaps a page into memory unless that page is needed. Since we are now viewing a program as a sequence of pages, rather than one large contiguous address space, the use of the term swap is technically incorrect. A swapper manipulates entire programs, whereas a pager is concerned with the individual' pages of a program. Hence term pager is usually used, rather than swapper, in connections with demand paging.

• When a program is to be swapped in, the pager guesses which pages will be used before the program is swapped out again. Instead of swapping in a whole process, the pager brings only those necessary pages into memory. Thus, it avoids reading into memory pages that will not be used any way, decreasing the swap time and the amount of physical memory needed.

• With this scheme, we need some form of hardware support to distinguish between those pages that are in memory and those pages that are on the disk. Fig. 8.5.8 shows hardware to implement demand paging.

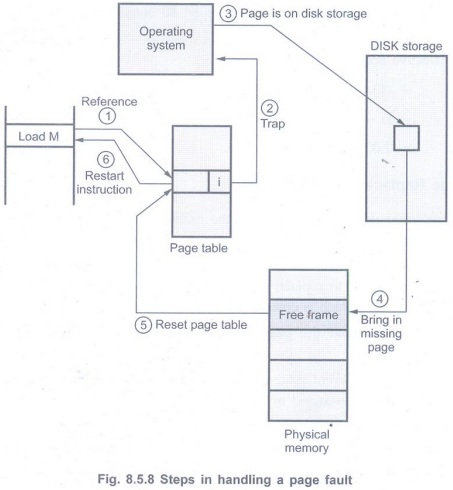

• As shown in the Fig. 8.5.8, the valid-invalid bits are used to distinguish between those pages that are in memory and those pages that are on the disk. When bit is set to "valid", it indicates that the associated page is both legal and in memory. It the bit is set to "invalid", it indicates that the page either is not valid (that is, not in the logical address space of the process), or is valid but is currently on the disk. If the process tries to use a page that was not brought into memory, access to a page marked invalid causes a page-fault trap. This trap is the result of the operating system's failure to bring the desired page into memory. The procedure for handling this page fault is illustrated in Fig. 8.5.8.

• This procedure goes through following steps:

1. It checks an internal table for this program, to determine whether the reference was a valid or invalid memory access.

2. If the reference is invalid, it terminates the process. If it is valid, but the referenced page is not available in the physical memory, trap is activated.

3. It finds a free frame.

4. It schedules a disk operation to read the desired page into the newly allocated frame.

5. When the disk read is complete, it modifies the internal table kept with the program and the page table to indicate that the page is now in memory.

6. It restarts the instruction that was interrupted by the illegal address trap. The program can now access the page as though it had always been in memory.

• The hardware to implement demand paging is the same as the hardware for paging and swapping :

Page table: This table has the ability to mark an entry invalid through a valid-invalid bit or special value of protection bits.

Secondary memory: This memory holds those pages that are not present in main memory. The secondary memory is usually a hard-disk. It is known as the swap device, and the section of disk used for this purpose is known as swap space or backing store.

Example 8.5.4: Calculate the effective address time if average page-fault service time of 20 milliseconds and a memory access time of 80 nanoseconds. Let us assume the probability of a page fault 10 %.     Dec.-09, Marks 2

Solution: Effective access time is given as

=(1 - 0.1) x (80) + 0.1 (20 milliseconds)

=(1 -0.1) × 80+ 0.1 x 20,000,000 = 72 + 2,000,000 (nanoseconds)

=2,000,072 (nanoseconds)

Page Replacement Algorithms

• If the required page is not found in the main memory, the page fault occurs and the required page is loaded into the main memory from the secondary memory. •However, if there is no vacant space in the main memory to copy the required page, it is necessary to replace the required page with one of the existing page in the main memory which is currently not in use.

• Thus we can say that the page replacement is a basic requirement of demand paging.

• There are many different page-replacement algorithms used by various operating systems. These are discussed in the following sections.

FIFO Algorithm

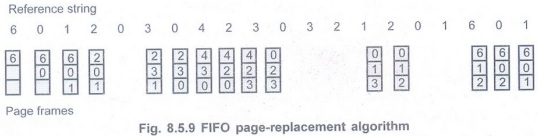

• It is the simplest page-replacement algorithm. A FIFO (First In First Out) replacement algorithm replaces the new page with the oldest page in the main memory.

• For our example reference string, our three frames are initially empty. The first three references (6, 0, 1) cause page faults, and the required pages are brought into these empty frames.

The next reference (2) replaces page 6, because page 6 was brought in first. Since 0 is the next reference and 0 is already in memory, we have no fault for this reference. The first reference to 3 results in page 0 being replaced, since it was the first of the three pages in memory (0, 1 and 2) to be brought in. This process continues as shown in Fig. 8.5.9.

• The FIFO page-replacement algorithm is easy to understand and program. However, its performance is not always good. It may replace the most needed page as it is oldest page.

Optimal algorithm

Advantage: An optimal page-replacement algorithm has the lowest page-fault rate of all algorithms. It has been called OPT or MIN.

• It simply states that "Replace the page that will not be used for the longest period of time".

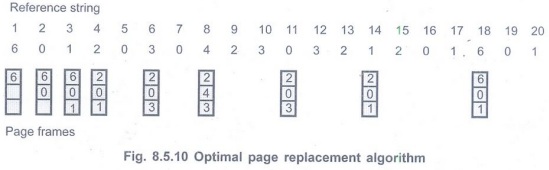

• For example, on our sample reference string, the optimal page replacement algorithm would yield nine page faults, as shown in Fig. 8.5.10. The first three references cause faults that fill the three empty frames.

Reference string

• The reference to page 2 replaces page 6, because 6 will not be used until reference 18, whereas page 0 will be used at 5, and page 1 at 14. The reference to page 3 replaces page 1, as page 1 will be the last of the three pages in memory to be referenced again. With only nine page faults, optimal replacement is much better than a FIFO algorithm, which had 15 faults. (If we ignore the first three, which all algorithms must suffer, then optimal replacement is twice as good as FIFO replacement.) In fact, no replacement algorithm can process this reference string in three frames with less than nine faults.

• Disadvantage: Unfortunately, the optimal page replacement algorithm is difficult to implement, because it requires future knowledge of the reference string.

LRU algorithm

• The algorithm which replaces the page that has not been used for the longest period of time is referred to as the Least Recently Used (LRU) algorithm.

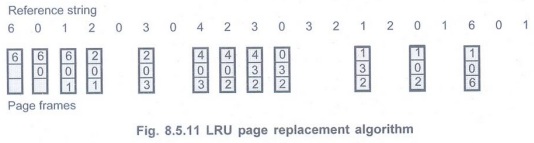

• The result of applying LRU replacement to our example reference string is shown in Fig. 8.5.11.

• When the reference to page 4 occurs, LRU replacement sees that, of the three frames in memory, page 2 was used least recently. The most recently used page is page 0, and just before that page 3 was used. Thus, the LRU algorithm replaces page 2, not knowing that page 2.

• When it then faults for page 2, the LRU algorithm replaces page 3 since, of the three pages in memory {0, 3, 4}, page 3 is the least recently used.

• LRU replacement with 12 faults is still much better than FIFO replacement with 15.

Counting algorithms

• In the counting algorithm the a counter of the number of references that have been made to each pages are kept, and based on these counts the following two schemes work.

• LFU algorithm: The Least Frequently Used (LFU) page replacement algorithm requires that the page with the smallest count be replaced.

• The reason for this selection is that an actively used page should have a large reference count.

• This algorithm suffers from the situation in which a page is used heavily during the initial phase of a process, but then is never used again.

• MFU algorithm: The Most Frequently Used (MFU) page replacement algorithm is based on the argument that the page with the smallest count was probably just brought in and has yet to be used.

Example 8.5.5: Explain page replacement algorithms. Find out page fault for following string using LRU method

60 12 0 30 4 2 30 321 20 15

Consider page frame size 3.

Solution:

Total page faults= 09

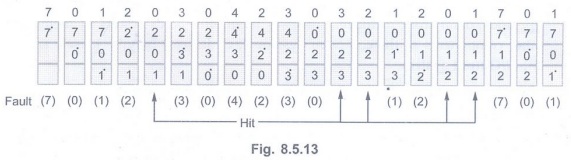

Example 8.5.6: Explain page replacement algorithm. Find out page fault for following string using LRU method. Consider page frame size 3.

7 0 1 2 0 3 0 4 2 3 0 3 2 1 2 0

Solution :Reference string


Total page faults = 15


Review Questions

1. What is virtual memory?  AU: Dec.-07, 08, June-07, 09, 10, Marks 2

2. What are benefits of virtual memory?  AU: June-10, Marks 4

3. Explain the virtual memory address translation and TLB with necessary diagram.  AU: Dec.-06, 08, 10, June-09, 10, Marks 10

4. What is virtual memory? Explain how the logical address is translated into physical address in the virtual memory system with a neat diagram.

AU: May-07, 15, Marks 10

5. Discuss the address translation mechanism.  AU May-06, Marks 5

6. What is the function of a TLB (Translation Look-aside Buffer)?  AU: May-06, Marks 2

7. Define Translation Lookaside Buffer (TLB). What is its use?  AU: Dec.-18, Marks 3

8. Explain a method translating virtual address to physical address.  AU May-12, 13, Dec.-12, Marks 6

9. Write short note on page segmentation.

10. Write a short note on demand paging.

11. What are the page replacement algorithms? Give details of LRU algorithm.

12. What are the steps involved in LRU replacement algorithm?

13. What is virtual memory? Explain in detail about how virtual memory is implemented with neat diagram?  AU: Dec.-15, Marks 16

14. Discuss the steps involved in the address translation of virtual memory with necessary block diagram.  AU: Dec.-16, Marks 13

15. Explain virtual memory address translation in detail with necessary diagrams.  AU May-17, Marks 7
