Two marks Questions with Answers

Two Marks Questions with Answers

6.1 Functional Units of Digital Computer

Q.1 Define computer architecture.

Ans.:Computer architecture is defined as the functional operation of the individual H/W unit in a computer system and the flow of information among the control of those units.

Q.2 Define computer H/W.

Ans. : Computer H/W is the electronic circuit and electro mechanical equipment that constitutes the computer.

Q.3 Name the functional units of a computer.   AU: Dec.-08

Ans. : The functional units of a computer are:

1. Input unit

2. Output unit

3. Control unit

4. Memory unit

5. Arithmetic and logical unit

Q.4 What is meant by Central Processing Unit (CPU)?  AU: Dec.-09

Ans. : The arithmetic and logic unit in conjunction with control unit is commonly called Central Processing Unit (CPU).

Q.5 What is the function of input unit ?

Ans. : A computer accepts a digitally coded information through input unit using input devices such as keyboard and mouse.

Q.6 What are the functions of control unit?

Ans. : The control unit co-ordinates and controls the activities amongst the functional units. The basic function of control unit is to fetch the instructions stored in the main memory, identify the operations and the devices involved in it, and accordingly generate control signals to execute the desired operations.

Q.7 What is the function of arithmetic and logic unit ?

Ans. : The Arithmetic and Logic Unit (ALU) is responsible for performing arithmetic operations such as add, subtract, division and multiplication, and logical operations such as ANDing, ORing, Inverting etc.

6.2 Von Neumann Architecture

Q.8 List the features of Von Neumann architecture.

Ans. :•It uses stored program concept. The program (instructions) and

data are stored in a single read-write memory.

• The contents of read-write memory are addressable by location, without regard to the type of data contained there.

• Execution of instructions occurs in a sequential manner (unless explicitly modified) from one instruction to the next.

Q.9 What is Von Neumann bottleneck ?

Ans. : Von Neumann Bottleneck Because of the stored program architecture of Von-Neumann machine, the processor performance is tightly bound to the memory performance. That is, since we need to access memory at least once per cycle to read an instruction, the processor can only operate as fast as the memory. This is sometimes known as the Von Neumann bottleneck or memory wall.

Q.10 What is the role of MAR and MDR ?

Ans. : The MAR (memory address register) is used to hold the address of the location to or from which data are to be transferred and the MDR(memory data register) contains the data to be written into or read out of the addressed location.

Q.11 What is the role of IR ?

Ans. : Instruction Register (IR) contains the instruction being executed. Its output is available to the control circuits, which generate the timing signals for controlling the processing circuits needed to execute the instructions.

Q.12 What is the role of PC ?

Ans. :The Program Counter (PC) register keeps track of the execution of the program. It contains the memory address of the instruction currently being executed. During the execution of the current instruction, the contents of the PC are updated to correspond to the address of the next instructions to be executed.

6.3 Operations of the Computer Hardware

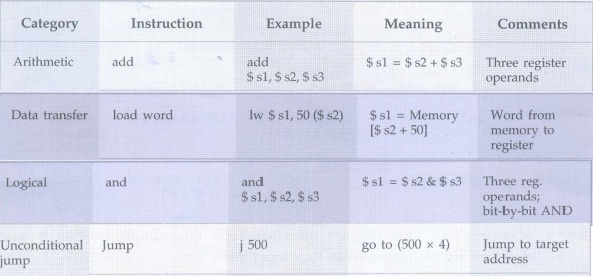

Q.13 Classify the instructions based on the operations they perform and give one example to each category.  AU: Dec.-18

Ans. :Refer section 6.3.1.

• Arithmetic

• Data transfer

• Logical

• Conditional branch

• Unconditional jump.

6.4 Operands of the Computer Hardware

Q.14 What do you mean by alignment restriction?

Ans. :

• In MIPS, the registers are 32-bit; hence, the word size is 32-bit (4 bytes).

• Since most memories are byte (8-bits) oriented, virtually all architectures today address individual bytes. However, the byte should be the starting byte of the word.

• Therefore, in MIPS, words must start at addresses that are multiples of 4. This requirement is called an alignment restriction and many architectures have it.

Q.15 Why are the most frequently used variables stored in registers ?

Ans. :Registers take less time to access and have higher throughput than memory. Hence, the compiler tries to keep the most frequently used variables in registers.

Q.16 What is spilling registers ?

Ans. :The process of putting less commonly used variables (or those needed later) into memory is called spilling registers.

6.5 Instructions

Q.17 List various logical operations supported by MIPS.

Ans. : Refer section 6.5.1.

Q.18 List the decision making instructions supported by MIPS assembly language.

Ans. :Refer section 6.5.2.

• MIPS assembly language includes two decision-making instructions, similar to an if statement with a go to.

• beq register1, register2, L1: This instruction means go to the statement labeled L1 if the value in register1 equals the value in register2. The mnemonic beq stands for branch if equal.

• bne register1, register2, L1: It means go to the statement labeled L1 if the value in register1 does not equal the value in register2. The mnemonic bne stands for branch if not equal. These two instructions are called conditional branches.

6.6 Instruction Set Architecture (ISA)

Q.19 What is Instruction set architecture ?AU : Dec-15

Ans. : One of the most imporant abstraction is the interface between the hardware and the lowest-level softwrae. Because of its importance, it is given a special name:The instruction set architecture of a computer. It includes anything programmer needs to know to make a binary machine language program work correctly, including instructions, I/O devices and so on.

6.7 Memory Locations and Addresses

Q.20 What do you mean by big endian ?

Ans. : When lower byte addresses are used for the more significant bytes (the leftmost bytes) of the word, addressing is called big endian.

Q.21 What do you mean by little endian ?

Ans. : When the lower byte addresses are used for, the less significant bytes (the rightmost byte) of the word, addressing is called little-endian.

Q.22 What are aligned addresses ?

Ans. : Word length is typically a multiple of 8, common CPU word length being 8, 16, 32 and 64-bits. When word lengths are more than 8-bits, we must take special care while accessing words. In the case of a 32-bit word length, natural word boundaries occur at addresses 0, 4, 8, In general, words are said to be aligned in memory if they begin at the natural word boundaries. The addresses of such words are called aligned addresses.

6.9 Instruction and Instruction Sequencing

Q.23 What are the various types of operations required for instructions ?

Ans. :• Data transfers between the main memory and the CPU registers

•Arithmetic and logic operation on data

• Program sequencing and control

• I/O transfers.

Q.24 What is operation code ?

Ans. :The operation code field in the instruction specifies the operation to be performed. The operation is specified by binary code, hence the name operation code or simply opcode.

Q.25 List various instruction formats with example.

Ans. :1. Three-address instruction - add a,b,c

2. Two-address instruction - add a,b

3. One address instruction - add a.

Q.26 What do you mean by zero address instruction ?

Ans. : It is also possible to use instruction where the locations of all operand are defined implicitly. This operand of the use of the method for storing the operand in which called push down stack. Such instructions are sometimes referred to as zero address instructions.

6.10 Addressing Modes

Q.27 What are addressing modes ?

Ans. : The different ways that a processor can access data are referred to as addressing schemes or addressing modes.

Q.28 List different addressing modes.

Ans. : 1. Register Mode

2. Absolute Mode or Direct Mode

3. Immediate Mode

4. Indirect Mode

5. Index Mode

6. Relative Mode

7. Autoincrement Mode

8. Autodecrement Mode

Q.29 Differentiate direct and indirect addressing mode.AU: Dec.-08

Ans. : In direct addressing mode the address of the location of the operand is given explicitly as a part of the instruction. On the other hand, in indirect addressing mode, the effective address of the operand is the contents of a register or the main memory location whose address is given explicitly in the instruction.

Q.30 State the basic addressing modes supported by RISC processor.

Ans. :The RISC processor has three basic addressing modes:

• Register addressing

• Immediate operand and

• Relative to PC addressing for branch instructions.

Q.31 What is relative addressing mode? When is it used? (Refer section 6.10)  AU: June-12

Here, the referenced register is program counter (PC) and hence this addressing mode is also known as PC-relative addressing.

The effective address is determined by adding the contents of PC to the address field. EA = PC + Address part of instruction.

The address part is a signed number so that it is possible to have branch target location either before or after the branch instruction. This addressing mode is commonly used to specify the target address in branch instructions.

• Example: JNZ BACK: This instruction causes program execution to go to the branch target location identified by the name BACK, if the branch condition is satisfied.

Q.32 What are addressing modes ?(Refer section 6.10)

Part of the programming flexibility for each processor is the number and different kind of ways the programmer can refer to data stored in the memory or I/O device. The different ways that a processor can access data are referred to as addressing schemes or addressing modes.

Q.33 What do you mean by effective address ?(Refer section 6.10)

• An address computed by the processor when executing a memory access or branch instruction or when fetching the next sequential instruction is known as Effective Address (EA). An effective address can be made up from as many as three elements: The base, index and displacement.

• An addressing mode specifies how to calculate the effective of an operand by using elements of effective information held in registers and/or constants contained within a machine instruction or elsewhere.

Q.34 List any four addressing modes ?(Refer section 6.10)

1. Register addressing mode.

2. Absolute or direct addressing mode.

3. Immediate addressing mode.

4. Indirect addressing mode.

5. Register indirect addressing mode.

6. Displacement addressing mode.

7. Relative addressing mode.

8. Base register addressing.

9. Index addressing mode.

10. Auto-increment addressing mode.

11. Auto-decrement addressing mode.

12. Stack addressing mode.

Q.35 What is immediate addressing mode ?(Refer section 6.10)

The operand is given explicitly in the instruction.

• Example :MOV #20, A: This instruction copies operand 20 in the register A. The sign # in front of the value of an operand is used to indicate that this value is an immediate operand.

Q.37 What is displacement addressing mode ?(Refer section 6.10)

This addressing mode combines the capabilities of direct addressing and register indirect addressing. In this addressing mode, instruction has two address fields: Value and referenced register. The effective address is computed by adding contentsof referenced register to value.

EA =Value + (R).

Three common variation of displacement addressing are :

• Relative addressing

• Base register addressing

• Index addressing.

Q.38 What is base register addressing mode ?(Refer section 6.10)

In this addressing mode, the referenced register contains the main memory address and address field contains the displacement. Displacement is usually unsigned integer number. EA = (R) + Displacement.

• Example: MOV [R+8], A: This instruction copies the contents of memory whose address is determined by adding the contents of register R and displacement 8 to the register A.

Q.39 What is index addressing mode ?(Refer section 6.10)

In this addressing mode, the address field references the main memory and the referenced register contains a positive displacement from that address. EA = Memory address + (R).

The indexing is a technique that allows programmer to point or refer the data (operand) stored in sequential memory locations one by one. It is an efficient mechanism for performing iterative operations.

• Example: MOV [R1 + RI], R: In this instruction main memory address is given by register R1 and the referenced register RI gives the positive displacement. The contents of the memory address generated by the addition of main memory address and displacement is copied to register R.

Q.40 What is autoincrement addressing mode ?(Refer section 6.10)  AU: May-16

The effective address of the operand is the contents of a register specified in the instruction. After accessing the operand, the contents of this register are incremented to address the next location.

• Example: MOV R0, (R2)+: The above instruction copies the contents of register RO into the memory location whose address is specified by the contents of register R2. After copy operation, the contents of register R2 are automatically incremented by 1.

Q.41 What is autodecrement addressing mode ?(Refer section 6.10)  AU: May-16

The contents of a register specified in the instruction are decremented and then they are used as an effective address to access a memory location.

• Example: MOV - (R0), R1: This instruction, initially decrements the contents of register RO and then the decremented contents of register RO are used to address the memory location. Finally, the contents from the addressed memory location are copied into the register R1.

Q.42 What is stack addressing mode ?(Refer section 6.10)

A stack is linear array of reserved memory locations. It is associated with a pointer called Stack Pointer (SP).

In stack addressing mode, stack pointer always contains the address of Top Of Stack (TOS) where the operand is to be stored or located. Thus, the address of the operand (source or destination) is the contents of stack pointer.

This addressing mode is the special case of register indirect addressing where referenced register is a stack pointer.

Usually, stack grows in the direction of descending addresses, (descending stack), starting from a high address and progressing to lower one. In this stack, SP is decremented before any items are appended (pushed) on stack and SP is incremented after any items popped from the stack.

• Example: PUSH R: This instruction decrements SP and copies the contents of register R on to the top of stack pointed by stack pointer.

Q.43 Brief about relative addressing mode with an example. (Refer section 6.10)

Here, the referenced register is program counter (PC) and hence this addressing mode is also known as PC-relative addressing.

The effective address is determined by adding the contents of PC to the address field. EA = PC + Address part of instruction.

The address part is a signed number so that it is possible to have branch target location either before or after the branch instruction. This addressing mode is commonly used to specify the target address in branch instructions.

• Example: JNZ BACK: This instruction causes program execution to go to the branch target location identified by the name BACK, if the branch condition is satisfied.

Q.44 What is meant by an addressing mode ? Mention most important of them. (Refer section 6.10)  AU: June-11

Part of the programming flexibility for each processor is the number and different kind of ways the programmer can refer to data stored in the memory or I/O device. The different ways that a processor can access data are referred to as addressing schemes or addressing modes.

An addressing mode specifies how to calculate the effective of an operand by using elements of effective information held in registers and/or constants contained within a machine instruction or elsewhere.

Q.45 Distinguish between autoincrement and autodecrement addressing mode. (Refer section 6.10)   AU: May-17

Autoincrement addressing mode: The effective address of the operand is the contents of a register specified in the instruction. After accessing the operand, the contents of this register are incremented to address the next location.

• Example: MOV R0, (R2)+: The above instruction copies the contents of register RO into the memory location whose address is specified by the contents of register R2. After copy operation, the contents of register R2 are automatically incremented by 1.

Autodecrement addressing mode: The contents of a register specified in the instruction are decremented and then they are used as an effective address to access a memory location.

• Example: MOV - (R0), R1: This instruction, initially decrements the contents of register RO and then the decremented contents of register RO are used to address the memory location. Finally, the contents from the addressed memory location are copied into the register R1.

Q.46 State the need for indirect addressing mode. Give an example. AU : May-17

Ans. : In indirect addressing mode, the instruction specifies the address where the address of the operand is located. In case of register indirect addressing, the address of the operand is specified by the contents of the register. These operating modes are needed when we need to access arrays. Specifically, in register indirect addressing, registers are used as pointers and they are very useful for dealing with arrays or tables of simple data values.

Consider Fig. 6.13.1, where a data structure consists of a sequence of consecutive byte values. The pointer register contains (1000) H, corresponding to the first item in the structure. To access item 2 in the structure we only need to increment the value in the pointer register.

6.12 Interaction between Assembly and Higher Level Language

Q.47 Compare machine level, assembly level and high level languages.

(Refer section 6.12.3)

Q.48 Define compiler.

Ans. :A compiler is a program which translates the source code written in a high-level language into computer-readable machine language that can be directly loaded and executed.

Q.49 Define interpreter.

Ans. :An interpreter translates a high-level language statement in a source program to a machine code and executes it immediately, before translating the next source language statement. When an error is found, the execution of the program is halted and an error message is displayed on the screen of the computer.
