Two Marks Questions
with Answers
Q.1 What is the difference between linear and
non-linear data structures ?
Ans. :
Q.2 Define: Binary tree.
Ans. : A binary tree is a finite
set of nodes which is either empty or consists of root and two disjoint binary trees
called the left subtree and right subtree. Refer Fig.
Q.3 Give various implementation of tree.
Ans. : The tree can be
implemented by two ways,
1.
Sequential implementation: The tree is implemented using arrays in this type of
implementation.
2. Linked
implementation: The tree is implemented or represented using linked list.
Q.4 Which tree representation is mostly
preferred by the developers sequential or linked? Justify.
Ans. : There are two ways of
representing the binary tree - Sequential representation and linked
representation. The linked representation is normally preferred by developers
because in the linked representation the binary tree is represented using
linked list. Hence the tree with any number of nodes can be created. Secondly
there is no wastage or shortage of the memory in this representation.
Q.5 List the applications of trees.
Ans. : 1. In computer networking
such as Local Area Network (LAN), Wide Area Networking (WAN), internetworking.
2. In
telephone cabling graph theory is effectively used.
3. In
job scheduling algorithms the graphs are used.
Q.6 In
tree construction which is the suitable efficient data structure ?
Ans. : The linked list is the
efficient data structure for constructing the trees. Because using linked list there
is no wastage of memory or shortage of memory. The nodes can be allocated or
de-allocated as per the requirements.
Q.7 What is meant by equivalent binary tree?
Ans. :
The two
binary trees are said to be equivalent if the sequence of their traversal is
same.
Q.8 Define complete binary tree.
Ans. : A complete binary tree is
a tree in which every node except the root node should have exactly two
children not necessarily on the same level. Refer Fig. 4.17.1
Q.9 What is level of a tree?
Ans. : The root node is always
considered at level zero. The adjacent nodes to root are supposed to be at
level 1 and so on.
Q.10 What are internal and external nodes in a
tree?
Ans. : Leaf node means a node
having no child node. As leaf nodes are not having further links, we call leaf
nodes external nodes and non-leaf nodes are called internal nodes.
Q.11What is sibling node in a tree ?
Ans. : The nodes with common
parent are
called
siblings or brothers.
Q.12 What is forest ?
Ans. : Forest is a collection of
disjoint trees. From a given tree if we remove its root then we get a forest.
Refer Fig. 4.17.2.
Q.13 What is full binary tree?
Ans. : A full binary tree is a
tree in which every node has zero or two children. Refer Fig. 4.17.3.
Q.14 List out the traversal techniques used in
tree.
Ans: 1. Preorder 2. Postorder 3.
Inorder traversal.
Q.15 Which traversal results in elements in
sorted order?
Ans. : The inorder traversal
results in elements in sorted order.
Q.16 How is binary tree represented using an
array ? Give an example.
Ans.
: In an array root node will be at position 1. Its left child will be at
position 2 and right child will be at position 3. Hence the nodes of tree are
placed in array using following formula -
Parent (n)=floor
((n-1)/2)
Left
(n)=(2n + 1)
right
(n)=(2n+2)
Consider
tree as given below.
It will
be placed in an array as given below.
Q.17 Construct an expression tree for the
expression A+ (B-C) * D* (E+ F).
Ans:
Q.18 Define binary search tree.
Ans. : Binary search tree is a
binary tree in which each node is systematically arranged i.e. the left child
has less value than its parent node and right child has greater value than its
parent node. The searching of any node in such a tree becomes efficient in this
type of tree.
For example -
Q.19 List the operations defined on binary
trees data type with a suitable example.
Ans. : Various operations that
can be performed on binary trees are
1.
Insertion 2. Deletion 3. Traversal
The insertion operation is performed to insert a node at any desired position.
Traversal
means a walkover a binary tree. It can be preorder, postorder and inorder
traversal.
Q.20 Write an algorithm to declare nodes of a
tree structure.
Ans. Algorithm :
1.
Declare a C structure for the node of a binary tree
typedef
struct node
{
int
data;
struct
node *left;
struct
node *right;
}bin;
2.
Create a node by allocating memory by using the dynamic memory
New
(bin*)malloc(sizeof(bin));
3.
Initialize the Left and Right child pointers to NULL.
New->left=NULL;
New->right=NULL;
Thus a
single node gets created. This is the first node of the tree, hence it is
called as the root node.
root=New;
4.
Attach the next subsequent nodes to either as a left child or a right child to
the corresponding parent nodes depending on the user's choice.
Q.21 Why it is said that the searching a node
in a binary search tree is efficient than that of a simple binary tree?
Ans. : In the binary search tree
the nodes are arranged in such a way that the left node is having less data
value than root node value. And the right nodes are having larger value than
that of root. Because of this while searching any node the value of target node
will be compared with the parent node and accordingly either left sub branch or
right sub branch will be searched. This procedure will be repeated if required.
So one has to compare only particular branches. Thus searching becomes efficient.
Q.22 If a binary tree with n nodes is
represented sequentially, then for any node with index i (a) 1 ≤ i ≤n,
then left child (i) is at 2i, if 2i ≤n.
(b) If 2i>n, then I has no left child. Name the type of binary tree which
satisfies both (a) and
(b).
Ans. : The complete binary tree.

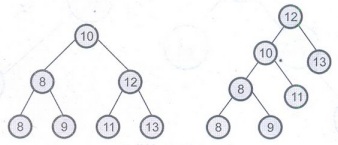

Q.23 What is meant by equivalent binary tree?
Ans. : The two binary trees are
said to be equivalent if the sequence of there traversal is same for example -
The sequence
is 8, 8, 9, 10, 11, 12, 13.
Q.24 List the applications of trees.
Ans. : Binary tree is used in
various applications such as -
1.
Binary search tree
3.
Expression tree
2. Game
tree
4.
Threaded Binary tree.
Q.25 Define binary tree and give binary tree
node structure.
Ans. : A binary tree is a finite
set of nodes which is either empty or consists of root or two disjoint binary
trees called the left subtree and right subtree.
Each
node in the binary tree contains three fields left child pointer, data field
and right child pointer.
Left
child | Data | Right child
struct
BST
{
BST
*leftchild;
int
data;
BST
*rightchild;
};

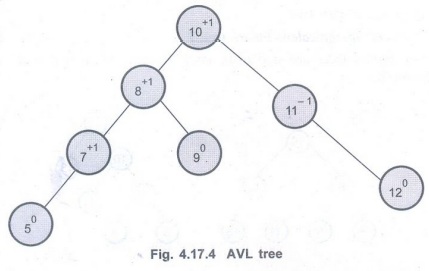

Q.26 What is AVL tree?
Ans; An AVL tree is a height
balanced tree in which the balance factor of each node can be 0, -1 or +1. It
is named as AVL tree because this tree structure was introduced by three
scientists Adelsion, Velski and Lendis.
For example:

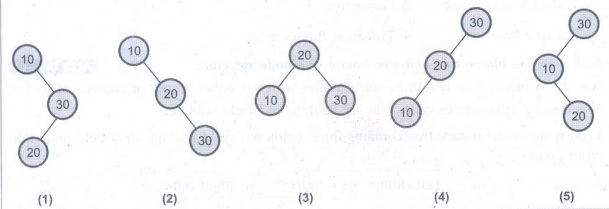

Q.27 How many trees are possible with 3 nodes ?
Ans. : For 3 nodes there are
23-3 trees possible. That means 5 such trees can be drawn. For example - If
there are 3 nodes with the value 10, 20, 30 then
Q.28 Show the result of inorder traversal of
the binary search tree given in Fig. 4.17.5. AU: Dec.-18
Ans.
Inorder Traversal: 1, 2, 3, 4, 5, 6, 7, 9
Q.29 For the tree in Fig. 4.17.6.
a) List the siblings for node E.
b) Compute the height.
Ans. :
i) Siblings are those nodes that share common parents. Hence sibling of E is D.
ii) The maximum level of tree is called height. The maximum level is A-B-E-J-M.
Thus height of tree of tree is 4.
Q.30 The depth of complete binary tree is 8 and
compute the number of nodes in leaf.
Ans. : The relationship between
depth of a tree and maximum number of nodes in leaf is,
2d -1 =
n
28-1 = n
n = 255
Q.31 How to resolve null links in a binary
tree?
Ans. : The left null link can
point to predecessor node and the right null link can point to successor node.
This way the null links can be utilized so that tranversing of the tree becomes
efficient.
