Pipelined Datapath and Control

Pipelined Datapath and Control

AU May-16,19

• The Fig. 7.9.1 shows the general structure of multistage pipeline. As shown in the Fig. 7.9.1, the usually pipeline processor consists of a sequence of m data processing circuits, called elements, stages or segments.

• These stages collectively perform a single operation on a stream of data operands passing through them. The processing is done part by part in each stage, but the final result is obtained only after an operand set has passed through the entire pipeline.

• Each stage consists of two major blocks : Multiword input register and datapath circuit.

• The multiword input registers R_i, hold partially processed results as they move through the pipeline and they also serves as buffers that prevent neighbouring stages from interfering with one another. In each clock period the individual stages process its data and transfers its results to the next stage.

• The m-stage pipeline processor shown in Fig. 7.9.1 can simultaneously process up to m independent sets of data operands. Thus when the pipeline is full, m separate operations are being executed concurrently, each in a different stage. This gives a new final result from the pipeline every clock cycle.

• If time required to perform single sub operation in the pipeline is T seconds then for m stage pipeline the time required to complete a single operation is mT seconds. This is called delay or latency of the pipeline.

• The maximum number of operations completed per second can be given as 1/T. This is called throughput of the pipeline.

 Implementation of Two Stage Instruction Pipelining

• The simplest instruction pipelining breaks instruction processing into two parts: A fetch stage S₁ and an execute stage S₂. When these two stages are overlapped, we get two stage pipelining with increased throughput.

• The Fig. 7.9.2 shows an implementation of a two-stage instruction pipeline. The fetch stage S₁ consists of the microprogram counter µPC, which is the source for

microinstruction addresses, and the control memory CM, which stores the microinstructions.

• The execution stage S₂consists of microinstruction register µIR, the decoders that extract control signals from the microinstructions in μIR, and the logic for determining next address or the branch address.

• The microinstruction register acts as a buffer register for stage S₂. With these two stages it is possible that, while instruction I_iwith address A_iis being executed by stage S₂, the instruction I_i+1 with the next consecutive addressA_i+1is fetched from memory by stage S₁. If on executing I_iin S₂ it is determined that a branch must be made to a nonconsecutive address, then the prefetched instruction I_i+1 in S₁has to be discarded. In such cases branch address is obtained directly from μI itself and fed back to S₁. The branch address is then loaded into µPC and next instruction is fetched from the branch address.

Organization of CPU with Four Stage Instruction Pipelining

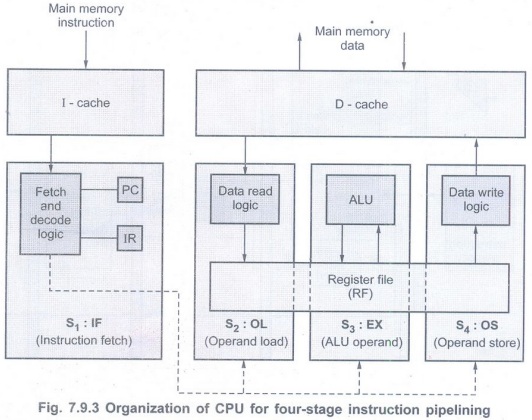

• The Fig. 7.9.3 shows the implementation of four-stage instruction pipelining. As shown in the Fig. 7.9.3 the CPU is directly connected to a cache memory, which is split into instruction and data parts, called the I-cache and D-cache, respectively. This splitting of the cache permits both an instruction word and a memory data word to be accessed in the same clock cycle.

• The four stages S₁:S₄ shown in Fig. 7.9.3 perform the following functions:

    • S₁: IF: Instruction fetching and decoding using the I cache.

    • S₂: OL: Operand loading from the D-cache to register file.

    • S₃: EX: Data processing using the ALU and register file.

    • S₄: OS: Operand storing to the D-cache from register file.

• Stages S₂ and S₄ implements memory load and store operations, respectively. • Stages S₂, S₃and S₄ share the CPU's local Register File (RF). The registers in the register file act as interstage buffer registers.

• The stage 3 implements data transfer and data processing operations of the register to register type using ALU of the CPU.

Implementation of MIPS Instruction Pipeline

• Fig. 7.9.4 shows the single-cycle datapath with the pipeline stages. The instruction execution is divided into five stages means a five-stage pipeline.

1. IF : Instruction fetch

2. ID: Instruction decode and register file read

3. EX: Execution or address calculation

4. MEM: Data memory access

5. WB: Write back.

• In this pipeline stages, all instructions advance during each clock cycle from one pipeline register to the next. The registers are named for the two stages separated by that register. For example, the pipeline register between the IF and ID stages is called IF/ID.

Pipeline Control

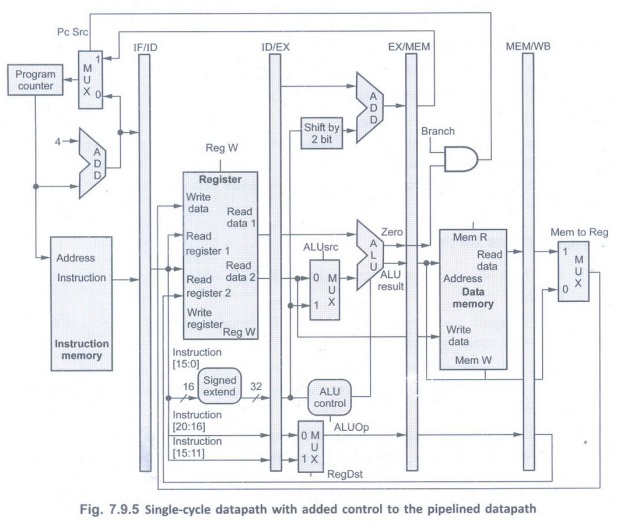

• Fig. 7.9.5 shows the single-cycle datapath with added control to the pipelined datapath.

• This datapath uses the control logic for PC source, register destination number, and ALU control discussed in the previous section.

• Here, we need the 6-bits funct field (function code) of the instruction in the EX stage as input to ALU control, so these bits must also be included in the ID/EX pipeline register.

• The 6-bits of funct field are also the 6 least significant bits of the immediate field in the instruction, so the ID/EX pipeline register can supply them from the immediate field since sign extension leaves these bits unchanged.

• We have already assumed that the PC is written on each clock cycle, so there is no separate write signal for the PC. Similarly, there are no separate write signals for the pipeline registers (IF/ID, ID/EX, EX/MEM, and MEM/WB), since the pipeline registers are also written during each clock cycle.

• As shown in the Fig. 7.9.5, each control line is associated with a component active in only a single pipeline stage. Thus, we can divide the control lines into five groups according to the pipeline stage.

1. Instruction fetch: The control signals to read instruction memory and to write the PC are always asserted, so there is nothing special to control in this pipeline stage.

2. Instruction decode/register file read: Nothing special to control in this pipeline stage.

3. Execution/address calculation: The signals need to be control are RegDst, ALUOP, and ALUSrc. The signals select the Result register, the ALU operation, and either Read data 2 or a sign-extended immediate for the ALU.

4. Memory access: The signals set in this stage are Branch, MemRead, and MemWrite. The branch equal, load, and store instructions set these signals, respectively. The PC Src selects the next sequential address unless control asserts Branch and the ALU result equal to 0.

5. Write-back: The two control signals set in this stage are Mem to Reg and RegWrite. The Mem to Reg signal decides between sending the ALU result or the memory value to the register file, and RegWrite signal writes the chosen value.

• The nine control lines we have seen in Fig. 7.9.6 are grouped here by pipeline stage. Thus implementing control means setting the nine control lines in each stage for each instruction.

• The simplest way to do this is to extend the pipeline registers to include control information as shown in Fig. 7.9.6.

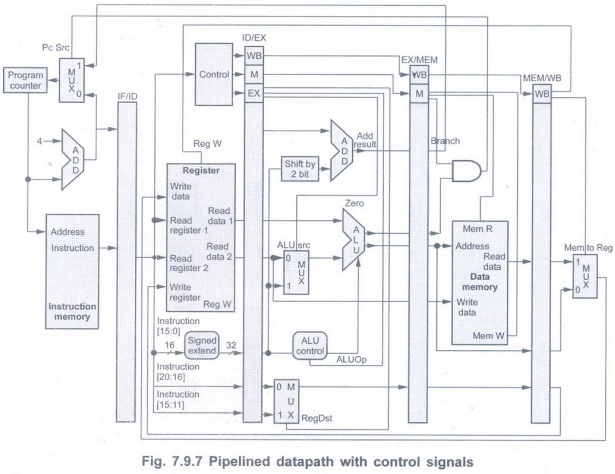

• Fig. 7.9.7 shows the full datapath with the extended pipeline registers and with the control lines connected to the control portions of the pipeline registers. The control values for the last three stages are created during the instruction decode

stage and then placed in the ID/EX pipeline register. The control lines for each pipe stage are used, and remaining control lines are then passed to the next pipeline stage.

Review Questions

1. Draw and explain the implementation of two stage instruction pipelining.

2. Draw and explain the implementation of four stage instruction pipelining.

3. Explain implementation of MIPS instruction pipeline.

4. Draw and explain the single cycle datapath with added control to the pipeline datapath.

5. Discuss about pipelined data path and control.  AU : May-16, Marks 12

6. Write down the five stages of instruction executions.  AU May-19, Marks 2
