Operands of the Computer Hardware

Operands of the Computer Hardware

AU: Dec.-18

Register Operands

• In MIPS, the operands of arithmetic instructions are restricted; they must be from a limited number of special locations built directly in hardware called registers.

• Registers are primitives used in hardware design that are also visible to the programmer.

• The size of a register in the MIPS architecture is 32-bits; groups of 32-bits occur so frequently that they are given the name word in the MIPS architecture.

• MIP computers have a limited number of registers, typically 32. This is one of the significant differences between the variables of a programming language and registers.

• MIPS limits the number of 32-bit registers to 32. The reason for the limit of 32 registers are:

• Many registers may increase the clock cycle time simply because it takes electronic signals longer when they must travel farther.

• More registers more bits in the instruction format.

Memory Operands

• The processor can keep only a small amount of data in registers, but computer memory contains billions of data elements. Hence, more data and data structures such as arrays and structures are kept in the computer memory.

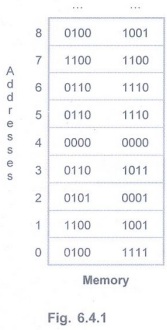

• Memory is just a large, single-dimensional array, with the address as the index to that array, starting at 0. This is illustrated in Fig. 6.4.1

• As mentioned above, arithmetic operations occur only on registers in MIPS instructions; thus, MIPS must include instructions that transfer data between memory and registers. Such instructions are called data transfer instructions.

• The instruction must have the memory address to access a word in the memory. For example, in Fig. 6.4.1, the address of the fourth data element is 3, and the value of Memory [3] is 0110 1011.

Load Instruction

• The data transfer instruction that copies data from memory to a register is called load.

• The format of the load instruction is divided into three parts:

• Name of the operation followed by

• the register to be loaded, then

• a constant and register used to access memory.

• The sum of the constant portion of the instruction and the contents of the second register forms the memory address.

• In MIPS, name for this instruction is lw, which stands for load word.

Example 6.4.1 Let's assume that A is an array of 50 words and that the compiler has associated the variables p and q with the registers $s1 and $s2. Let's also assume that the array's starting address, or base address, is in $s3. Compile this C assignment statement : p = q + A[7];

Solution: Here, one of the operands is in the memory, so we have first to transfer A[7] to a temporary register. This is achieved by -

lw $t0, 7 ($s3)// Temporary reg $t0 gets A[7]

The address of this array element is the sum of the base of the array A, found in register $s3, plus the number to select element 7.

The instruction must add q (contained in $s2) to A[7] (contained in $t0) and put the sum in the register corresponding to p (associated with $s1). This is achieved by -

add $s1, $s2, $to// p = q + A[7]

Note: The constant in a data transfer instruction is called the offset, and the register added to form the address ($s3) is called the base register.

Alignment Restriction

• In MIPS, the registers are 32-bit; hence, the word size is 32-bit (4 bytes).

• Since most memories are byte (8-bits) oriented, virtually all architectures today address individual bytes. However, the byte should be the starting byte of the word.

• Therefore, in MIPS, words must start at addresses that are multiples of 4. This requirement is called an alignment restriction and many architectures have it.

• The 32-bit word size also affects the array index of the memory. To get the proper byte address, the offset to be added to the base register $s3 must be multiplied by 4. For example, to access a byte from A[5], the offset to be added to the base register, $s3 must be 5 x 4 or 20.

Store Instruction

• The instruction complementary to load is called store; it copies data from a register to memory.

• The format of a store is similar to that of a load :

• Name of the operation, followed by

• the register to be stored, then offset to select the array element and finally

• the base register.

• Once again, in MIPS, the address of the operand is specified in two parts: Offset and base.

• In MIPS name for this instruction is sw, which stands for store word.

Example 6.4.2 Assume variable p is associated with register $s2 and the base address of the array A is in $s3. What is the MIPS assembly code for the C assignment statement A[10] = p + A[7]?

Solution: We have first to transfer A[7] to a temporary register. This is achieved by lw $t0, 28 ($s3) // Temporary reg $t0 gets A[7]

The instruction must add p (contained in $s2) to A[7] (contained in $t0) and put the sum in the temporary register since it is finally should be stored in memory.

Add $t0,$s2,$t0              //Temporary reg $t0 gets p + A[7]

The final destination stores the sum into A[10], using 40 (4 × 10) as the offset and register $s3 as the base register.

sw $t0, 40 ($s3)// Stores p + A[7] back into A[10]

Register Vs Memory

• A MIPS data transfer instruction only reads one operand or writes one operand, without operating on it. However, MIPS arithmetic instruction can read two registers, operate on them and write the result.

• Thus, registers take less time to access and have higher throughput than memory. •Many programs have more variables than computers have registers. Consequently, the compiler tries to keep the most frequently used variables in registers and places the rest in memory, using loads and stores to move variables between registers and memory.

• The process of putting less commonly used variables (or those needed later) into memory is called spilling registers.

Constant or Immediate Operands

• The arithmetic instructions in which one operand may be a constant. This constant operand is also known as an immediate operand. For example,

addi $s2, $s2, 5 // $s2 = $s2 + 5

• The above instruction is an add immediate instruction (addi), and it adds 5 in the contents of register $s2.

• By including constants inside arithmetic instructions, operations are much faster and use less energy than if constants were loaded from memory.

Example 6.4.3 Assume variable b is associated with register $s2 and the base address of the array A is in $s3. What is the MIPS assembly code for the C assignment statement below? A[10] = A[5] + b;

Solution: Although there is a single operation in the C statement, now two of the operands are in memory, so we need even more MIPS instructions.

lw $t0,20($s3)//Temporary reg $t0 gets A[5] using 16 (4 X 5)

add $t0,$s2,$t0// Temporary reg $t0 gets A[5] + b

sw $t0,40($s3)// Stores b + A[5] back into A[10] using 40 (4 x10) as the offset

and                  register$s3 as the base register.

Example 6.4.4 Assume that the variables f, g, h, i, and j are assigned to registers $s0, $s1, $s2, $s3, and $s4, respectively. Assume that the base address of the arrays A and B are in registers $s6 and $s7, respectively. C Code: f = 8 + A[B[4]-B[3]]; For the C statement above, what is the corresponding MIPS assembly code?

Solution:

lw $t0, 16($s7)// $to = B[4]

lw $t1, 12($s7)// $t1 = B[3]

sub $to, $to, $t1// $to = B[4] - B[3]

sll $to, $t0, 2// $to =$to * 4

add $to, $to, $s6// $to =&A[B[4] - B[3]]

lw $t1, 0($t0)// $t1=A[B[4] - B[3]]

add $s0, $s1, $t1// f g + A[B[4] - B[3]

Example 6.4.5 Assume that the variables ƒ and g are assigned to registers $50 and $s1 respectively. Assume that the base address of the array A is in register $s2. Assume f is zero initially.

f = -8 - A[4]

A[5] = ƒ + 100;

Translate the above C statements into MIPS code. How many MIPS assembly instructions are needed to perform the C statements and how many different registers are needed to carry out the C statements ?    AU: Dec.-18, Marks 5

Solution:

lw $t0, 16[$s2]// Save A[4] into register to

sub $s0, $s0, $t0// f = f - A[4]

sub $s0, $s0, $s1//f=f-g

add i $s0, $s0, 100// f + 100

lw 20[$s2], $s0// Save f into A[5]

For registers are needed to carry out the C statements

Example 6.4.6 The following problems deal with translating from C to MIPS. Assume that the variables f, g, h, i, and j are assigned to registers $50, $s1, $s2, $s3, and $s4, respectively. Assume that the base address of the arrays A and B are in registers $s6 and $s7, respectively.

a. f = - g - A[5];

b. B[7] = A[i – j];

Solution :

a.

lw $t0, 20[$s6]// save A[5] into register to

add $to, $to, $s1// g + A[5]

sub $s0, $zero, $to// f=0-( g + A[5])

b.

sub $to, $s3, $s4 //i -j

add $to, $to, $s6// puts i - j into array

lw $t0, 0($t0) // makes to its own address

sw $t0, 28($s7)// throws B[7] into register t0

Review Questions

1. Write a note on the operands of the computer hardware.

2. Explain the load instruction.

3. Explain the store instruction.

4. What do you mean by alignment restriction?

5. What do you mean by spilling registers ?

6. Why are frequently used variables stored in registers ?
