Definition: Path

A path in a multigraph G consists of an alternating sequence of vertices and edges of the form

V₀, e₁ V₁, e₂, V₂, … e_n-1, V_n-1, e_n, V_n

where each edge e_i contains the vertices V_i-1 and V_i

The number n of edges is called the length of the path.

The path is said to be closed if V_o = V_n we say the path is from V_o to V_n or between V_o and V_n or Connects V_o to V_n.

Note :

1. A simple path is a path in which all vertices are distinct. (A path in which all edges are district will be called a trail)

2. If V_o = V_n, then P is called a closed path. On the other hand if V_o ≠ V_n, then P is an open path.

3. For the following graph

Definition: Circuit:

A path of length ≥ 1 with no repeated edges and whose end vertices are same is called a circuit.

Note :

4. A cycle is a circuit with no other repeated vertices except its end vertices.

5. A cycle is a simple circuit, a loop is a cycle of length 1.

6. In a graph a cycle that is not a loop must have length atleast 3, but there may be cycles of length 2 in a multigraph.

7. Two paths in a graph are said to be edge-disjoint if they have no common edges, they are vertex - disjoint if they have no common vertices.

Definition: Path graph

A path graph of order 'n' is obtained by removing on edge from a C_n graph, denoted by P_n.

Definition: Trail

A trail from v to w is a path from v to w that does not contain a repeated edge.

Thus a trial from v to w is a path of the form

v = v₀, e₁, v₁, e₂, ... v_k-1, e_k, v_k = w where all the e_i are distinct.

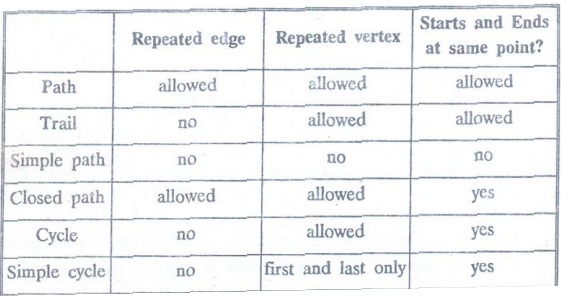

Note: Every simple path is also a trail, and every trail is also a path, but these inclusion do not reverse.

Example 1: Does each of these lists of vertices from a path in the following graph? Which paths are simple? Which are circuits? What are the lengths of those that are paths?

(a) a, e, b, c, b    (b) e, b, a, d, b, e

(c) a, e, a, d, b, c, a      (d) c, b, d, a, e, c

Solution :

(a) path of length 4, not a circuit, not simple.

(b) not a path

(c) not a path

(d) simple circuit of length 5.

Definition: Connected and disconnected graphs

A graph G is a connected graph is there is atleast one path between every pair of vertices in G. Otherwise G is a disconnected graph.

Example:

Note: A disconnected graph consists of two or more connected graphs. Eachof these connected subgroups is called a component (or a block).

Example 2. Determine whether the given graph is connected.

Solution: (a) No     (b) No

Example 3. For the following graph

Theorem: If a graph G (either connected or not) has exactly two vertices of odd degree, there is a path joining these two vertices.

Proof: Case (i) Let G be connected.

Let v₁ and v₂ be the only vertices of G with are of odd degree.

But we know that number of odd vertices is even.

Clearly there is a path connecting v₁ and v₂, because G is connected.

Case (ii) Let G be disconnected.

Then the components of G are connected.

Hence v₁ and v₂ should belong to the same component of G.

Hence, there is a path between v₁ and v₂.

Theorem :

The maximum number of edges in a simple disconnected graph G with n vertices and k components is (n - k) (n - k + 1)

Proof :

Let the number of vertices in the i^th component of G be n₁ (n_i ≥1)

Now the maximum number of edges in the i^th component of

G = ½ n_i (n_i − 1)

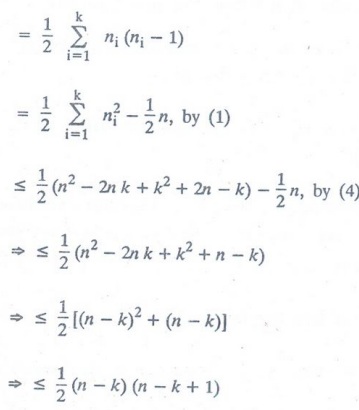

Therefore maximum number of edges of G

Example 3. Let G = (V,E) be a simple graph. Let R be the relation on V consisting of pairs of vertices (u, v) such that there is a path from u to v or such that u = v. Show that R is an equivalence relation.

Solution :

(i) Reflextive :

R is reflexive by definition.

(ii) Symmetry: Assume that (u, v) ϵ R, then there is a path from u to v. Then (v, u) ϵ R because there is a path from v to u.

(iii) Transitive:

Assume that (u, v) ϵ R and (v, w) ϵ R; then there are paths from u to v and from v to w. Putting these two paths together gives a path from u to w.

Hence, (u, w) ϵ R. It follows that R is transitive.

Theorem: There is a simple path between every pair of distinct vertices of a connected undirected graph.

Proof: Let u and v be two distinct vertices of the connected undirected graph G = (V, E).

Since G is connected, there is at least one path between u and v. Let x₀, x₁,...,x_n, where x₀ = u and x_n = v, be the vertex sequence of a path of least length.

This path of least length is simple.

Suppose it is not simple. Then x_i = x_j for some i and j with 0 ≤ i < j.

This means that there is a path from u to v of shorter length with vertex sequence x₀, x₁, ..., x_i-1, x_j, ..., x_n obtained by deleting the edges corresponding to the vertex sequence x_i, ..., x_i-1.

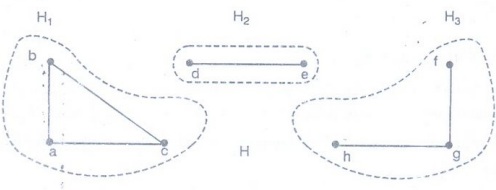

Example 4. What are the connected components of the graph H shown in figure.

Solution: The graph H is the union of three disjoint connected subgraphs H₁, H₂, and H₃.

These three subgraphs are the connected components of H.

Definition: A directed graph is strongly connected if there is a path from a to b and from b to a whenever a and b are vertices in the graph.

Definition: A directed graph is weakly connected if there is a path between every two vertices in the underlying undirected graph.

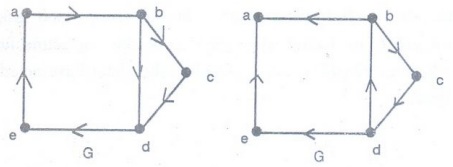

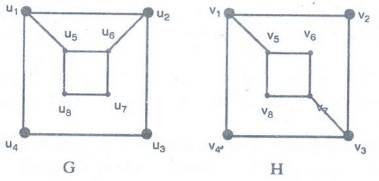

Example 5. Are the directed graphs G and H shown in figure strongly connected? Are they weakly connected?

Solution: G is strongly connected because there is a path between any two vertices in this directed graph. Hence, G is also weakly connected.

The graph H is not strongly connected. There is no directed path from a to b in this graph. However, H is weakly connected, because there is a path between any two vertices in the underlying undirected graph of H.

Cut vertex, Cut set and Brige

A cut vertex of a connected graph G is a vertex whose removal increases the number of components. Clearly if v is a cut vertex of a connected graph G, G - v is disconnected. A cut vertex is also called a cut point.

Bridge:

If a graph G is connected and e is an edge such that G - e is not connected, then e is said to be a bridge or a cut edge.

Paths in Acquaintanceship Graphs: In an acquaintanceship graph there is a path between two people if there is a chain of people linking these people, where two people adjacent in the chain know one another.

Paths in Collaboration Graphs: In a collaboration graph two vertices a and b, which represent authors, are connected by a path when there is a sequence of authors beginning at a and ending at b such that the two authors represented by the endpoints of each edge have written a joint paper.

Paths in the Hollywood graph: In the Holly wood graph two vertices a and b are linked when there is a chain of actors linking a and b, where every two actors adjacent in the chain have acted in the same movie.

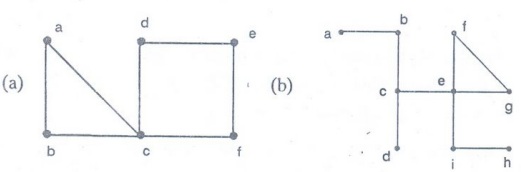

Example 6. Find all the cut vertices of the given graph.

Solution :

(a) e

 (b) b, c, e, i

Example 7. Suppose that v is an endpoint of a cut edge. Prove that v is a cut vertex if and only if this vertex is not pendant.

Solution: If a vertex is pendant it is clearly not a cut vertex. A endpoint of a cut edge that is a cut vertex is not pendant.

Remove of a cut edge produces a graph with more connected components than in the original graph.

If an endpoint of a cut edge is not pendant, the connected component it is in after the remove cut edge contains more than just this vertex.

From this, removal of that vertex and all edges incident to it, including the original cut edge, produces a graph with more connected components than were in the original graph.

Hence, an endpoint of a cut edge that is not pendant is a cut vertex.

Theorem: Let G be a graph with adjacency matrix A with respect to the ordering 1, 2, ..., n (with directed or undirected edges, with multiple edges and loops allowed). The number of different paths of length r from i to j, where r is a positive integer, equals the (i,j)th entry of A^r.

Example 8. Show that a simple graph G with n vertices is connected if it has more than (n - 1) (n - 2)/2 edges.

Solution:

Suppose that G is not connected.

Then it has a component of k vertices for some k, 1 ≤ k ≤ n-1.

The most edges G could have is

C (k, 2) + C (n-k, 2) = [k (k-1) + (n - k) (n - k-1)]/2

= k² - nk + (n² - n)/2.

This quadratic function off is minimized at k = n/2 and maximized at k = 1 or k = n-1.

Hence, if G is not connected, then the number of edges does not exceed the value of this function at 1 and at n-1, namely, (n - 1) (n - 2)/2.

Example 9. How many paths of length four are there from a to d in the simple graph G in figure.        [A.U N/D 2012]

Solution: The adjacency matrix of G (ordering the vertices as a, b, c, d) is

Hence, the number of paths of length four from a to d is the (1, 4)th entry of A⁴. Since

there are exactly eight paths of length four from a to d. From this graph, we see that a, b, a, b, d; a, b, a, c, d; a, b, d, b, d; a, b, d, c, d ; a, c, a, b, d; a, c, a, c, d; a, c, d, b, d; and a, c, d, c, d are the eight paths from a to d.

EXERCISES 3.4

1. Determine whether each of these graphs is strongly connected and if not, whether it is weakly conected.

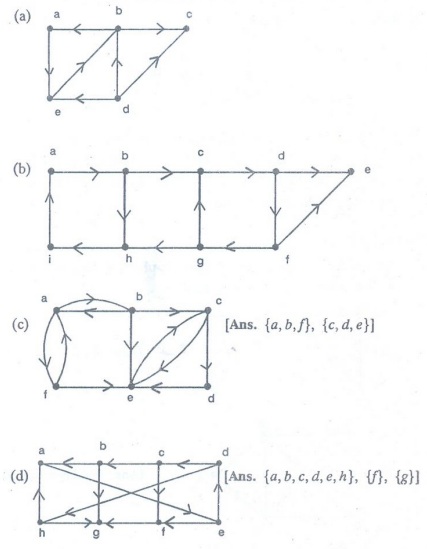

2. Find the strongly connected components of each of these graphs.

3. Show that all vertices visited in a directed path connecting two vertices in the same strongly connected component of a directed graph are also in this strongly connected component.

4. Find the number of paths of length n between two different vertices in K₄ if n is

 (a) 2           [Ans. 2]

(b) 3            [Ans. 7]

(c) 4             [Ans. 20]

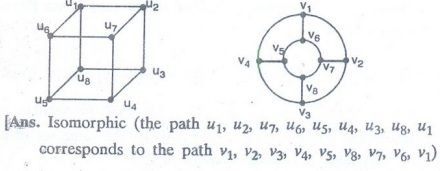

5. Use paths either to show that these graphs are not isomorphic or to find an isomorphism between these graphs.

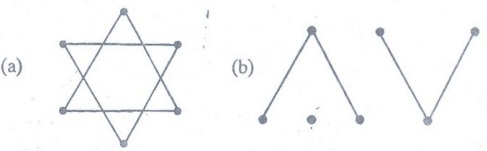

6. Use paths either to show that these graphs are not isomorphic or to find an isomorphism between them.

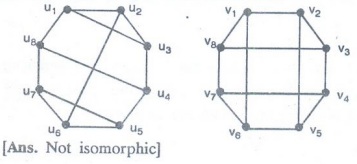

7. Use paths either to show that these graphs are not isomorphic or to find an isomorphism between them.

8. Show that every connected graph with n vertices has at least n-1 edges.

9. Show that in every simple graph there is a path from any vertex of odd degree to some other vertex of odd degree.

10. Show that a vertex c in the connected simple graph G is a cut vertex if and only if there are vertices u and v, both different from c, such that every path between u and v passes through c.

11. Show that a simple graph with at least two vertices has at least two vertices has at least two vertices that are not cut vertices.

12. Show that an edge in a simple graph is a cut edge if and only if this edge is not part of any simple circuit in the graph.

13. Show that if a connected simple graph G is the union of the graph G₁ and G₂, then G₁ and G₂ have at least one common vertex.

14. Show that if a simple graph G has k connected components and these components have n₁, n₂, ..., n_k vertices, respectively, then the number of edges of G does not exceed

Σ^k_i=1 C (n_i, 2)

15. How many nonisomorphic connected simple graphs are there with n vertices when n is

(a) 2?[Ans. 1]   (b) 3? [Ans. 2]   (c) 4? [Ans. 6]    (d) 5? [Ans. 21]

16. Let P₁ and P₂ be two simple paths between the vertices u and in the simple graph G that do not contain the same set of edges. Show that there is a simple circuit in G.

17. Show that a simple graph G is bipartite if and only if it has no circuits with an odd number od edges.

18. Explain why in the collaboration graph of mathematicians a vertex representing a mathematician is in the same connected component as the vertex representing Paul Erdos if and only if that mathematician has a finite Erdos number.

19. What do the connected components of acquaintanceship graphs represent? [Ans. Maximal sets of people with the property that for any two of them, we can find a string of acquaintances that takes us from one to the other.
